Description

X4-FCS Details

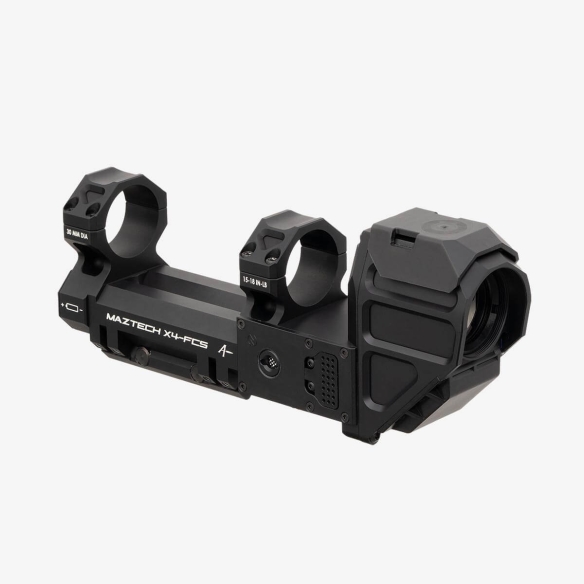

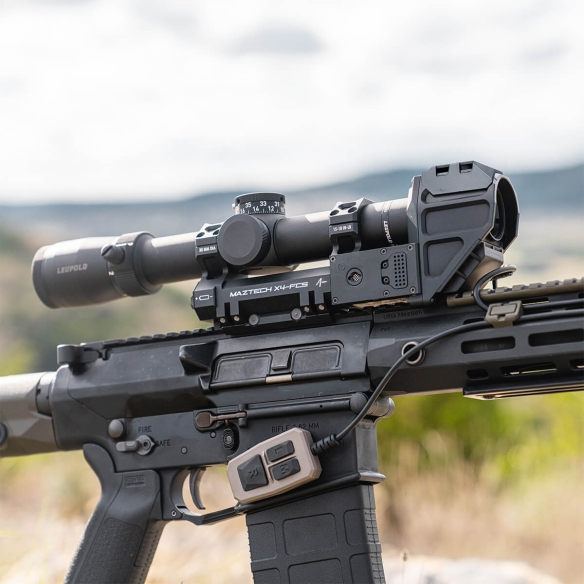

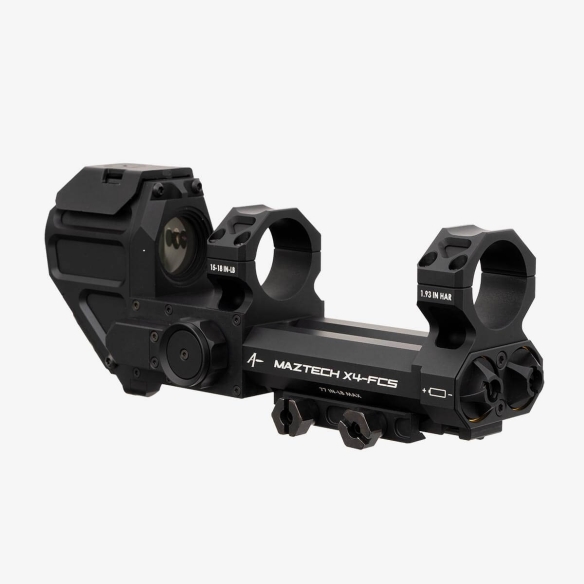

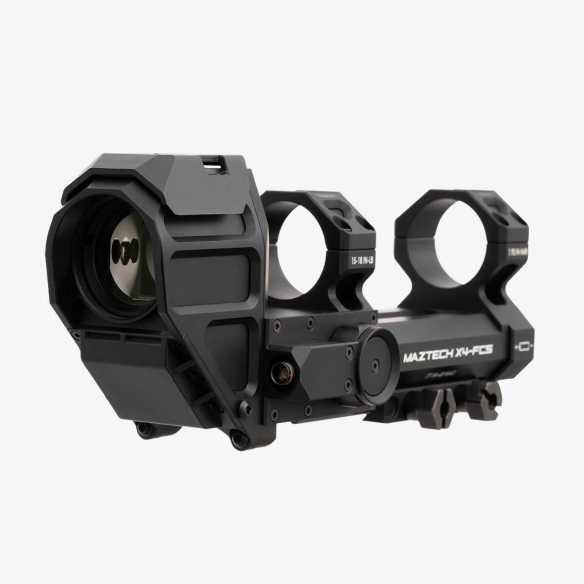

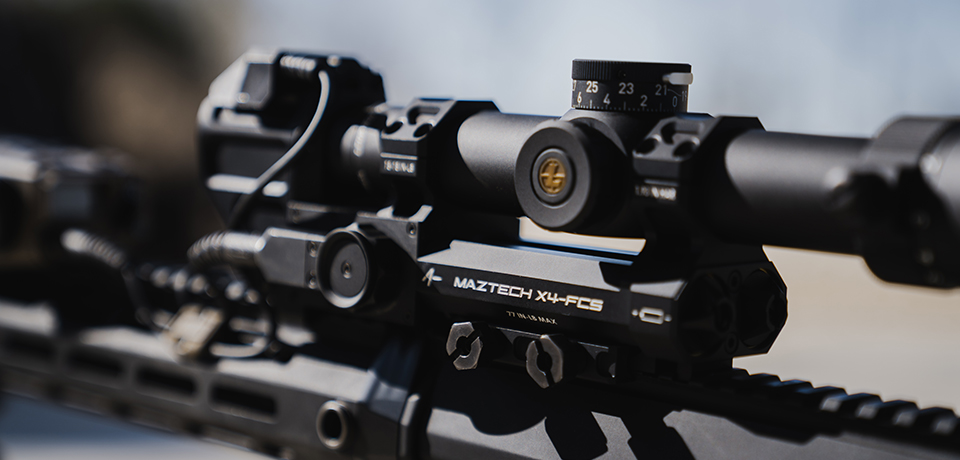

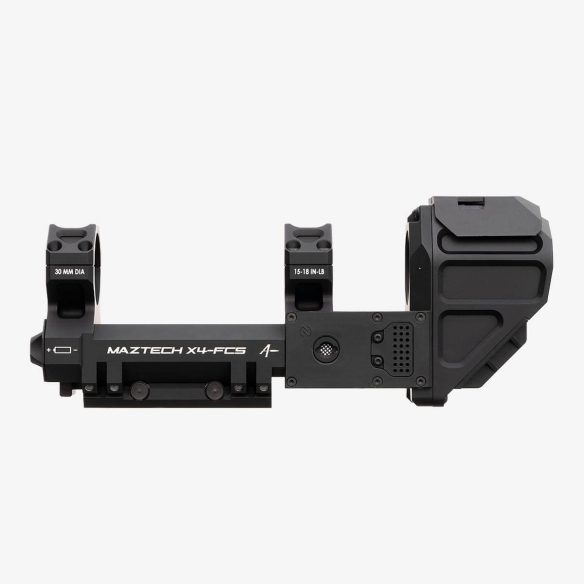

The Maztech X4-FCS (Fire Control System) pairs with the shooter’s 30 mm low power variable optic (LPVO) and works as a mount that provides real-time ballistic calculations for first-shot impacts on target, even out to the maximum effective range of the ammunition. The X4-FCS uses data points such as temperature, pressure, humidity, pitch, roll, and heading that are all paired with the ballistic solver and ballistics library thanks to its use of the Applied Ballistics® software and database. By combining these parameters with user-supplied bullet and firearm data, the X4-FCS creates a precise, ballistic-compensated offset aiming point that acts as the shooter’s aimpoint through the LPVO.

All X4-FCS information is projected in clear, bright green text that’s even visible when backlit by full sunlight, and the various information is fully customizable by the shooter. The X4-FCS unit is durable, thanks to its 7075-T6 billet aluminum construction, which is finished in a Type III hard anodized black finish for durability. The unit mounts on a standard Picatinny rail and weighs 22.6 oz with the two included rechargeable, USB-C 18650 batteries installed. The batteries yield one year of life when operating at a rate of ten hours per week thanks to its activated wake technology. The X4-FCS is also waterproof to three (3) feet of submersion for 30 minutes and can operate in temperatures ranging from -40° F to 140° F (subject to appropriate temperature-rated batteries).

Virtually all 30 mm LPVOs can be mounted onto the FCS, regardless of whether the scope has a first- or second-focal plane reticle (click the Resources tab for LPVO size and fit). To setup the X4-FCS, simply zero the mounted scope, then align the X4-FCS display to overlay on top of the scope’s reticle. Because the aiming point of the X4-FCS complements the existing reticle, if the batteries die, the scope is still perfectly useable. As many as 30 different ballistic profiles can be saved by the X4-FCS, meaning it can easily accommodate multiple ammunition types and firearms.  Optionally, pair the X4-FCS to the Maztech Companion App on your smartphone for quick setup leveraging the Applied Ballistics online database.

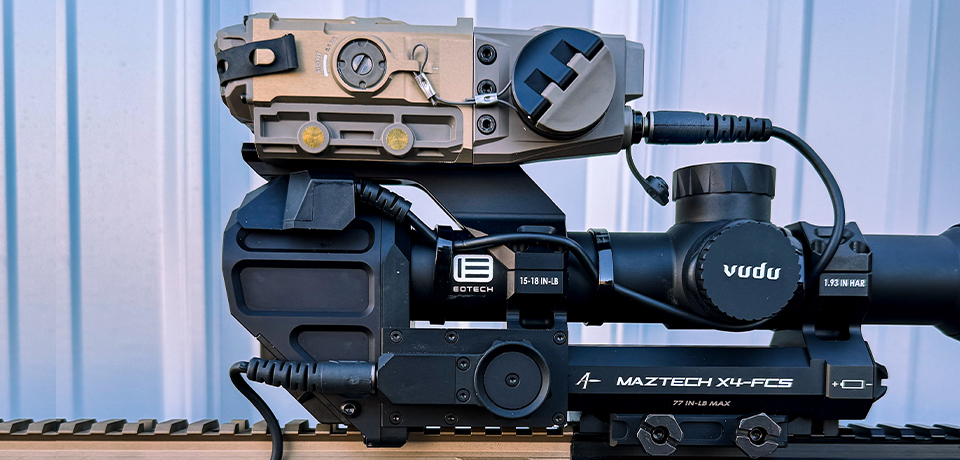

Easily connect the X4-FCS to a Maztech X4-LRF (Laser Rangefinder; sold separately) for the ultimate targeting and fire control solution.

Made in the USA.

Technical Specs

Overall Dimensions: 8.2 in x 2.3 in x 3.0 in. (209 mm x 59 mm x 77 mm)

Weight: 22.6 oz. (including two 18650 batteries)

Composition: Made from billet 7075-T6 aluminum with Type III hard anodized finish

Copmpatibility: Fits most LPVO, straight-tube style scopes w/30 mm tubes. Mounts to STANAG 4694 rails (STANAG 2324 / Picatinny MIL-STD-1913)

Other Specs:

• Two (2) rechargeable 18650’s and USB-C charging cables are included providing one (1) year of life at a use of 10 hours per week; Can also use four (4) CR123 batteries
• 1 click = 0.5 MOA/0.15 MIL adjustment when adjusting the X4-FCS overlay; maximum ballistic drop that can be calculated is 115 MOA/33 MIL when using the X4-FCS aiming point
• Waterproof to three (3) feet for 30 minutes; operates between -40° F to 140° F (depending on battery type)
• While the X4-FCS can function independently, some of the more advanced options are more easily accessed via a paired smartphone
